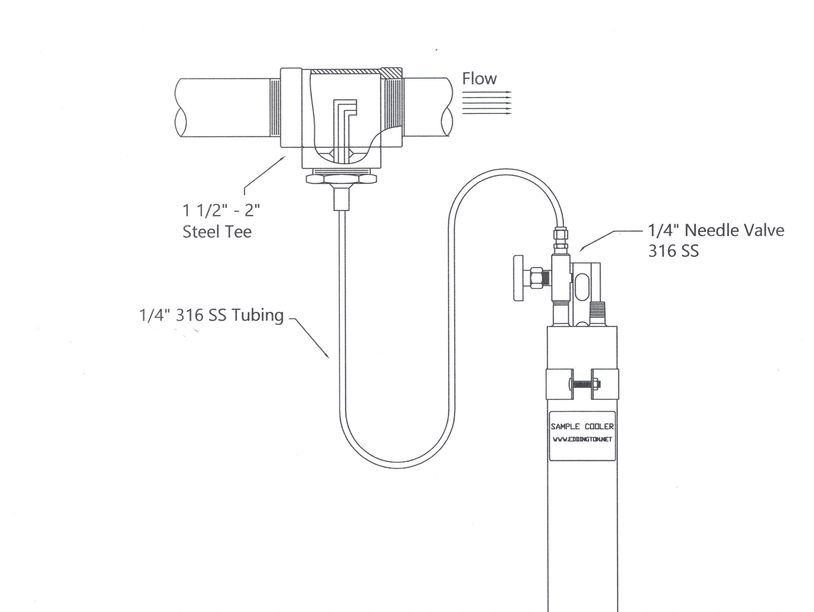

Isokinetic Single-Port Steam Sampling Nozzle
- An isokinetic steam sampling nozzle is designed to extract a representative sample of steam from a pipeline or process vessel, while maintaining the same velocity as the main flow to ensure accuracy.
- Precision-machined nozzle ensures consistent sampling velocity
- Meets ANSI/AAMI ST108 standards
- Corrosion-resistant materials for steam service
- Operating Pressure: Up to 600 psi
- Operating Temperature: Up to 486°F
- For Use in 1 1/2" or 2" Steam lines
